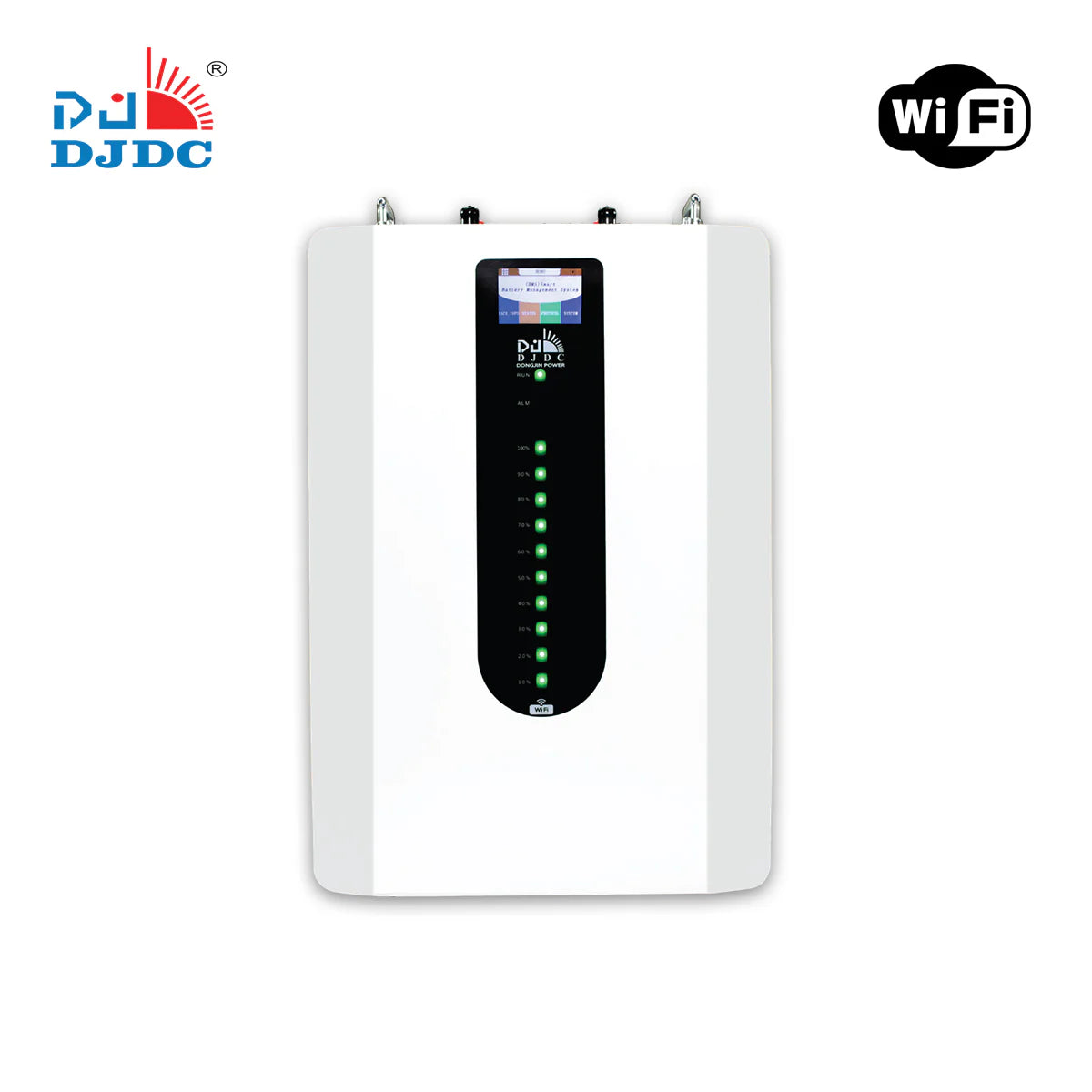

DJDC Dongjin 51.2V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth - 5.12kW - IP32
Description Elevate your energy storage with the Dongjin Wall-Mounted 51.2V 100Ah LiFePO4 Battery, delivering 5120Wh of robust power...
- Rs.250,000.00
Rs.270,000.00- Rs.250,000.00
- Unit price
- per
Subtotal:
Rs.250,000.00
ORDER ON WHATSAPP
Description
xElevate your energy storage with the Dongjin Wall-Mounted 51.2V 100Ah LiFePO4 Battery, delivering 5120Wh of robust power for solar and off-grid systems. Its sleek, wall-mounted design saves space while offering a remarkable 6000-cycle lifespan at 80% capacity, ensuring long-term reliability and cost savings. Featuring a smart BMS with WiFi, Bluetooth, RS232, RS485, and CAN connectivity, this battery integrates effortlessly with leading solar hybrid inverters. The touch LCD display provides real-time monitoring, while built-in protections safeguard against over-charge, over-discharge, and over-temperature. With fast charging capabilities and the ability to perform in extreme heat (up to +60°C), this battery is ideal for demanding applications. Choose Dongjin for smarter, more efficient energy storage.
Donwload Datasheet
- Compact Design: Wall-mounted to optimize space.
- Long-Lasting Performance: 6000 cycles at 80% capacity.
- Advanced Connectivity: WiFi, Bluetooth, and multiple ports for easy integration.
- Rapid Charging: Optimized for fast charge and discharge in solar systems.
- High Heat Tolerance: Reliable performance up to +60°C.
Datasheet
| Specification | Value |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy | 5120Wh |
| Cell Quantity | 16 Cells |
| Internal Resistance | ≤10mΩ |
| Parallel Communication Quantity | 15 Batteries |
| Full Charge Voltage | 58.4 |
| Full Discharge Voltage | 48v |
| Charging Passive Current Limit | 20Ah |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Communication | WiFi, Bluetooth, RS232, RS485, CAN |
| Display | Touch Screen LCD |
| Cycle Life | 6000 cycles @ 80% |
| Protection | BMS (Over-Charge, Over-Discharge, Over-Temperature) |
| IP Degree | IP32 |
| Standard Charge Method | 0.2C cc (Constant current) charge to FC, cv (Constant voltage FC) charge till charge current declines to <0.05C |
| Storage Temperature | 0-40°C |
| Charge Temperature Range | 0-45°C |
| Discharge Temperature Range | -20°C to 60°C |

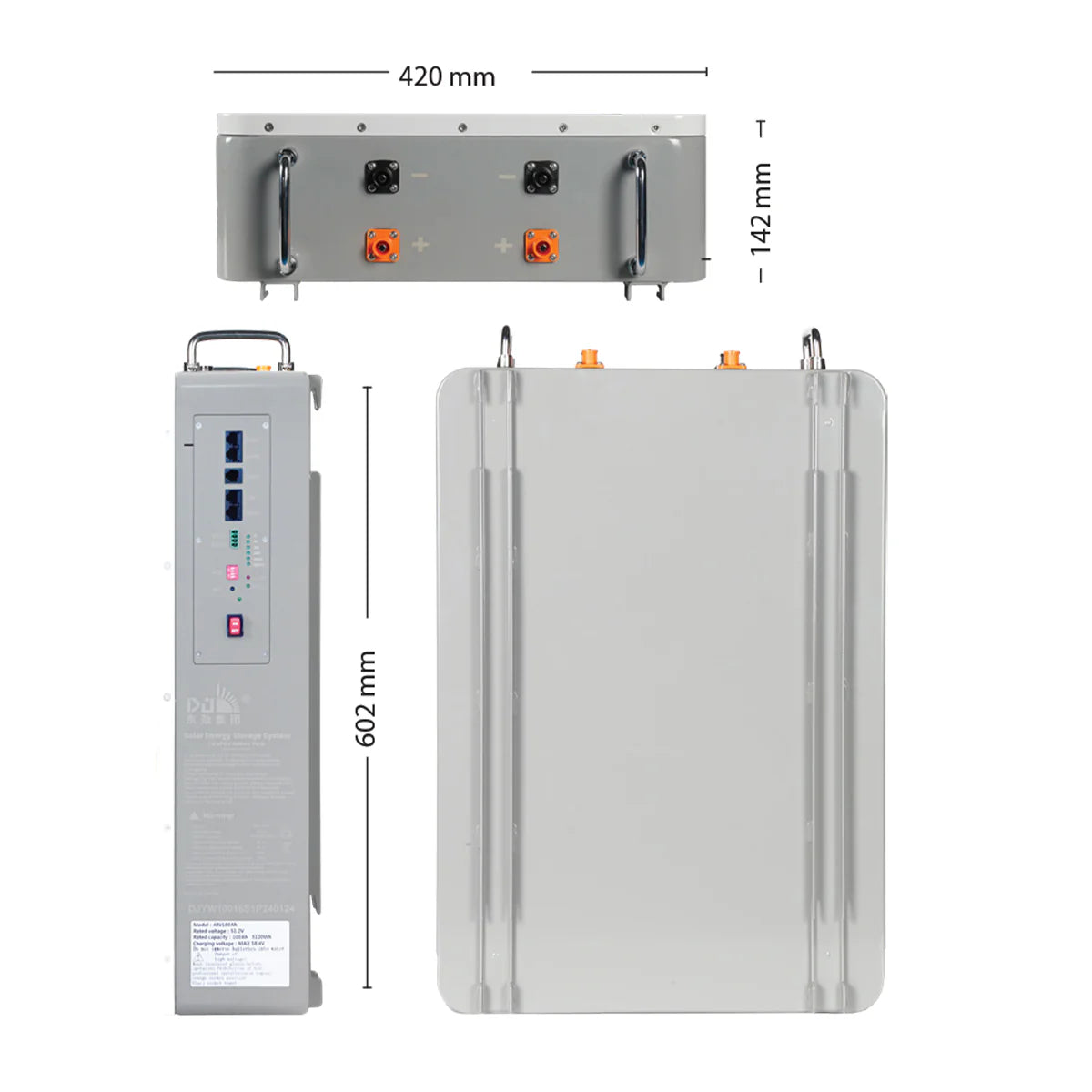

| Dimensions (DxWxH) | 602 x 420 x 142 mm |
| Net Weight | 51 kg |
