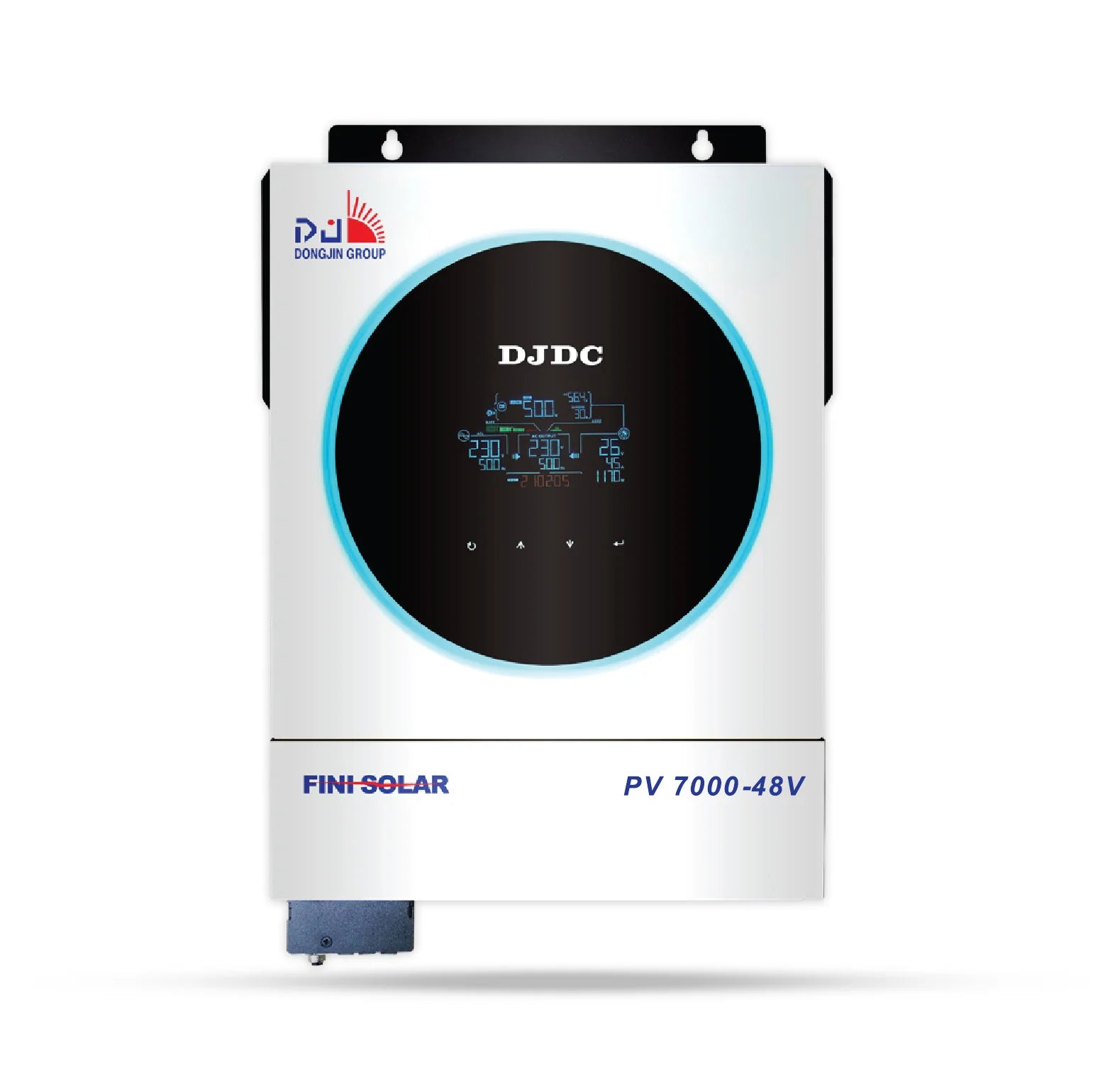

DJDC PV7000 6KW Hybrid Solar Inverter with 7000W MPPT Solar Charge Controller
Description PRIMAX GALAXY PV7000+ Hybrid Solar Inverter with 7000W MPPT Solar Charge Controller A high-performance hybrid solar...
- Rs.145,000.00
Rs.220,000.00- Rs.145,000.00
- Unit price
- per
Subtotal:
Rs.145,000.00
ORDER ON WHATSAPP
Description
xPRIMAX GALAXY PV7000+ Hybrid Solar Inverter with 7000W MPPT Solar Charge Controller
A high-performance hybrid solar inverter designed for efficient energy management in both off-grid and grid-connected applications. This model features smart load management, high charging capacity, and extensive monitoring options, making it suitable for larger residential or commercial setups.
Key Features
- Feed-in to the Grid with Storage Backup: Allows seamless integration with the grid while maintaining energy storage backup for continuous power supply.
- Dual Outputs for Smart Load Management: Optimizes energy distribution across multiple loads, providing better control over system performance.
- Maximum PV Input Current 27A: Supports efficient solar energy conversion with high current input capacity.
- Customizable RGB Status LED Ring: Provides a visually customizable indication of the inverter’s operational status.
- 4.3” Colored LCD with Touchable Button: Easy-to-use interface with clear information for system monitoring and management.
- Built-in Wi-Fi for Mobile Monitoring: Enables remote monitoring and control of the inverter via an app (available for iOS and Android).
- USB On-the-Go Function: Supports USB devices for easy data transfer and system updates.
- Reserved Communication Port for BMS: Offers communication support for Battery Management System (BMS) integration (RS485, CAN-BUS, or RS232).
- Maximum Charging Current 120A: High charging capacity to efficiently charge connected batteries.
- Maximum AC Output 6000W: Provides powerful AC output to meet the energy needs of larger loads.
- Parallel Operation: Allows up to 9 units to operate in parallel, increasing capacity for larger installations.
- Built-in Anti-Dust Kit: Designed for durability in harsh environments, offering protection against dust and debris.
The PRIMAX GALAXY PV7000+ Hybrid Solar Inverter combines advanced features with flexibility, making it a great solution for large-scale energy systems that require both high performance and comprehensive monitoring.
Download PDF
| Technical Specifications | |
|---|---|
| Rated Output Power | 6000W |
| Maximum PV Input Power | 7000W |
| Maximum Charging Power | 6000W |
| PV Input (DC) | |
| Nominal DC Voltage / Max DC Voltage | 360VDC / 500VDC |
| Start-up Voltage / Initial Feeding Voltage | 120VDC / 150VDC |
| MPPT Voltage Range | 120VDC ~ 430VDC |
| Number of MPP Trackers / Max Input Current | 1 / 27A |
| Grid Output (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 ~ 264.5 VAC or 195.5 ~ 253 VAC (Selectable) |
| Nominal Output Current | 26A |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| Battery Mode Output (AC) | |
| Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure Sinewave |
| Efficiency (DC to AC) | 93% |
| AC Input | |
| Start-up Voltage / Auto Restart Voltage | 120 ~ 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 ~ 280 VAC or 170 ~ 280 VAC |
| Maximum AC Input Current | 40A |
| Battery & Charger | |
| Nominal DC Voltage | 48 VDC |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Total Charge Current | 120A |
| Physical | |
| Dimensions (D×W×H) | 140 × 295 × 468 mm |
| Net Weight | 12 kg |
| Interface | |
| Parallel Function | Yes, up to 9 Units |
| Communication Ports | USB / RS232 / RS485 / WiFi / Dry-contact |
| Environment | |
| Humidity | 0% to 90% RH (Non-Condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
