DISCRIPTION:

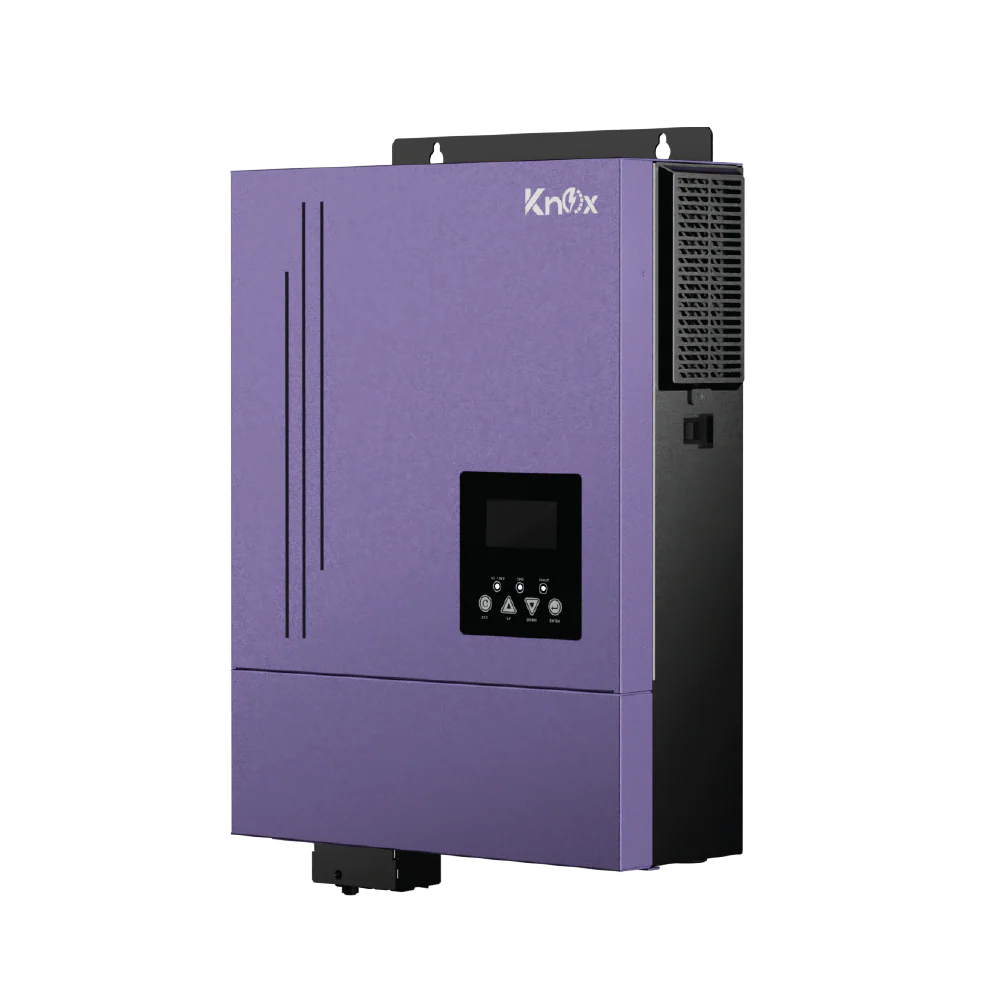

Power your home or business with the Knox Krypton Eco 6600, a 6.2KW hybrid solar inverter engineered for efficiency and durability. This versatile inverter delivers pure sine wave output, batteryless operation, and dual output grid feeding, making it ideal for both on-grid and off-grid energy solutions. Its wide PV input range and intelligent load management ensure maximum solar utilization with minimal maintenance.
Key Features:
| KNOX SERIES | Krypton Eco 6600 |
| MODEL | 6.2kW-48-pV6600-TWIN |
| Rated Power | 6600VA/6600W |
| Battery Mode Power | 5000W |
| PV+Bat Output Power | 6200W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 184 - 264 or 195.5 - 253 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 18000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 6600W |
| MPP Range @ Operating Voltage | 90 ~ 450VDC |
| PV Rated Current | 18A |
| Max. Input Current (Isc) | 20A |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 115 x 300 x435 |
| Net Weight (kgs) | 10.4 |
| Communication Interface | RS232, optional WiFi |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | Storage Temperature | -10°C to 50°C | -15°C to 60°C |
