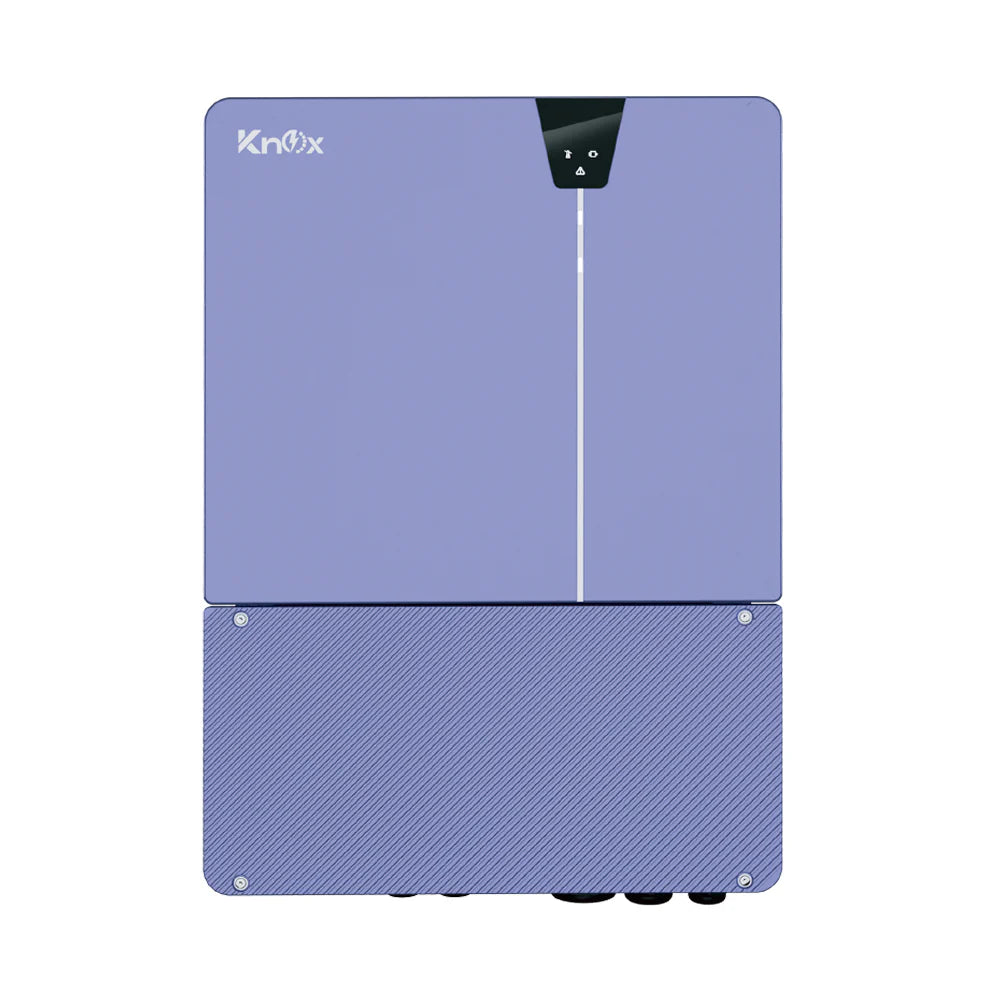

Knox Zynex ZX-3M-0816 | 8kW IP66 Hybrid Solar Inverter With PV 16000W 3 MPPT, Wi-Fi - IP66
Description: The Zynex 8kW Hybrid Inverter (ZX-3M-0816) is designed for high-efficiency solar energy systems with advanced hybrid functionality. With...
- Rs.345,000.00
Rs.395,000.00- Rs.345,000.00
- Unit price
- per
Subtotal:
Rs.345,000.00
ORDER ON WHATSAPP
Description
xDescription:
The Zynex 8kW Hybrid Inverter (ZX-3M-0816) is designed for high-efficiency solar energy systems with advanced hybrid functionality. With 3 MPPTs, IP66 protection, and seamless grid/off-grid operation, it ensures maximum performance and reliability for residential and commercial setups.
- 3 Independent MPPTs – Flexible PV array design for higher yields
- Max. 20A Input Current per MPPT – Ideal for bifacial & large-area solar modules
- Up to 200% PV Oversizing – Maximize energy generation
- UPS-Level Switching (<10ms) – Instant backup during power outages
- Expandable up to 30kW – Scalable for future growth
- Compatible with Lithium & Lead-Acid Batteries – Flexible storage options
- Multi-Source Black Start – Integrates PV, battery, and generator for reliable restarts
- IP66 Rated – Built tough for both indoor and outdoor installations
Download Datasheet
Technical Specifications:
| Specification | ZX-3M-0816 (8kW) |
|---|---|
| Max. PV Array Power | 16,000 W |
| Max. Input Voltage | 550 V |
| MPPTs / Strings per MPPT | 3 / 1 |
| Max. Input Current (per MPPT) | 20 A |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Power | 8,000 W |
| Max. Charge/Discharge Current | 190 A |
| Battery Type | Lithium (LiFePO₄) / Lead-acid |
| Rated AC Output Power | 8,000 VA |
| Max. AC Output Power | 8,800 VA |
| Efficiency (Max. / European) | 97.6% / 97% |
| Switching Time | <10 ms |
| Degree of Protection | IP66 |
| Dimensions (W × H × D) | 484 × 679 × 230 mm |
| Weight | 34.5 kg |
